Profile SemiQual offers test sockets with elastomer/spring contact probe pins/wire which cover handler/production test, hand test, burn-in test, memory/logic/RF test and high speed/current test. Sockets are designed and manufactured by the internal engineering team. SemiQual proudly presents a turn-key solution for the probecards. This service covers from Cobra, Wire, Pogo, MEMS and Cantilever types. SemiQual provides various pins in any configuration-to-order, guaranteed to meet each customer’s specification. The probecards are fully characterized and tested to exceed customer’s expectations. SemiQual’s technology also provides various types of probe pins tailored for the sockets and in-circuit test boards. We offer pre-defined and custom designed pins which are capable of high current, high bandwidth, high temperature and high number of insertions. The probe pins can be designed and manufactured to meet each customer’s requirements. SemiQual’s RF capabilities provide coaxial cables, RF probes and RF cable blocks.  Our solutions are cost effective compared to other providers. SemiQual’s test boards are designed and fabricated for ATE’s and engineering bench equipments.  SemiQual guarantees high quality products for high frequency and multi-site testing. All boards are custom designed and manufactured. Please contact SemiQual for any inquiries.

Elastomer

SemiQual offers various types of high performance elastomers.

• Micro Brick Particle (MBP) technology
• Lower CRES/pin-to-pin resistance/contact force
• Longer lifespan and pin force with thicker layer
• MEMS particles from top to bottom
• Reduced CRES with less number of particles in the column
• Operating Temperature: -40C to +125C
• High Bandwidth up to 100GHz

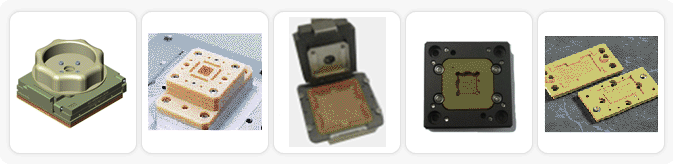

Test Sockets

SemiQual offers a turn-key solution for various types of sockets. Total engineering service includes the design phase to fabrication with internally manufactured probe pins. The types of packages include BGA, QFN, QFP, SOP and other conventional type sockets.

• Elastomer/Pogo Sockets
• Manual Hand Test Sockets
• Handler / Production Test Sockets
• Burn-in Sockets
• Memory (DDR,Flash) / Logic Sockets
• Graphic, MCP, PoP package Sockets
• RF Sockets
• Custom Design Services

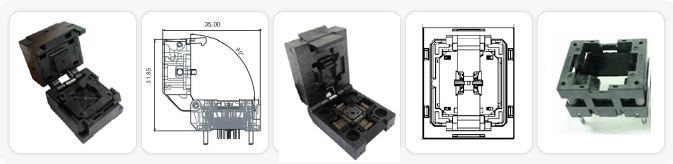

Burn-in Sockets

SemiQual provides different types of burn-in sockets at low cost.  Molded housing/lid and low cost pins can support multi-device testing.

• Low cost solution
• -55C to +180C
• HTOL, HAST, LTOL, ESD
• For LGA, BGA, SOP, QFP and ETC.
• Please send an inquiry to sales@sq.cadreamloans.com for detailed information

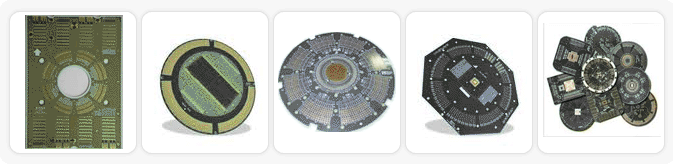

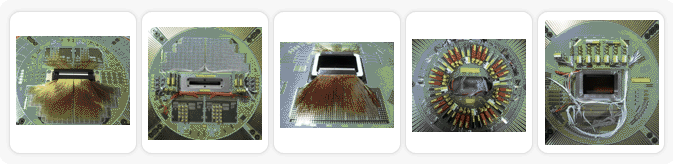

Probecards

SemiQual provides high quality probe cards for wafer level test.

• Vertical Probe Cards with probe pins
• Cantilever Probe Cards
• P2 Probe Card: NiCrCo, in-line 30um, staged 30um
• P2-b Probe Card: BeCu, Beni, in-line 25um, staged 15um
• High Frequency
• Multi-site Capable
• Needle / blade type
• Fine Pitch 30um – 50um
• Design to Fabrication

Test Boards

SemiQual provides the test boards for various ATE testers and bench equipment.

• ATE engineering/final test boards for Verigy, Teradyne, Advantest and Credence/LTX
• Bench test boards
• Blind Via technology
• Design to fabrication
• Minimum pitch: 0.4 mm
• Maximum layers: 50+ layers
• Impedance control: +- 5%, 10%
• Impedance matching: 33 Ohms, 50 Ohms, …..
• Custom Boards
• Design. Layout and Fabrication services
• RF, Memory, Mixed Signal, High Speed Digital Boards
• Multi-site Capable

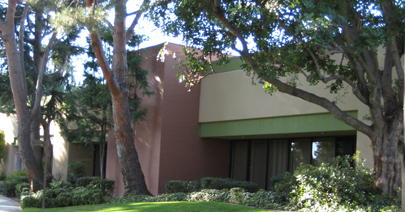

Company Headquarter
